AimTTi TF930 Frequency Counter

The AimTTi TF900 series of Benchtop Universal Counters with a USB Interface capable of measuring frequencies up to 3GHz or 6GHz. This library provides a python interface to the TF900.

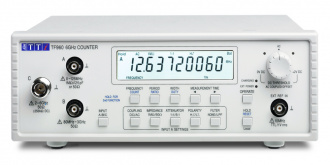

TF930 Image

Reference Documents

Product Website

Datasheet

USB Driver Installation

USB Drivers

Programming Manual

Controlling FTDI USB Devices from Linux

Module Documentation

AimTTI Devices.

This module contains classes and functions for interfacing with AimTTI instrumentation

TF930

Bases: object

TF930 Frequency Counter.

This class controls a AimTTI TF930 Frequency Counter
